Well, How do i need to prepare Specify itself (how to test it)?, how is the link between specify and an idp like entra. Do i need to create same user by hand? Will it be populated? Group restrictions, etc. But for Starting, a Bird view of implementation an “quickstart” would be cool. Everybody knows how OIDC etc. works more or less, but implemetation/integration in a System varies a lot.
1 Like
Hello All, thank to @vinayakjha we have now a working Login with Entra ID. Problem was basically a missing setting. The counterpart of
SECURE_PROXY_SSL_HEADER = (‘HTTP_X_FORWARDED_PROTO’, ‘https’)
was missing in nginx config.
proxy_set_header X-Forwarded-Proto $scheme;
And it worked like a charm!
Edit: Just let me know if you struggle with the Entra-App Part
1 Like
Hello @dfernandez,
Not sure where this line should go in the nginx.conf file:
Could you share a copy of your file?
Thanks
Hy @Heryk
sure, my config file looks like this atm:
server {
listen 443 ssl;
listen 80;
http2 on;
server_name specify.yourdomain.com;
ssl_certificate /etc/nginx/certs/fullchain.pem;
ssl_certificate_key /etc/nginx/certs/privkey.pem;
ssl_session_cache shared:le_nginx_SSL:10m;
ssl_session_timeout 1440m;
ssl_session_tickets off;
# curl https://ssl-config.mozilla.org/ffdhe2048.txt > /path/to/dhparam
ssl_dhparam /etc/nginx/certs/dhparam;
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:DHE-RSA-CHACHA20-POLY1305;
ssl_prefer_server_ciphers on;
root /usr/share/nginx;
# serve static files directly
location /static/ {
root /volumes;
rewrite ^/static/config/(.*)$ /specify6/config/$1 break;
rewrite ^/static/depository/(.*)$ /static-files/depository/$1 break;
rewrite ^/static/(.*)$ /static-files/frontend-static/$1 break;
}
# proxy these urls to the asset server
location ~ ^/(fileget|fileupload|filedelete|getmetadata|testkey|web_asset_store.xml) {
resolver 127.0.0.11 valid=30s;
client_max_body_size 5000M;
set $backend "http://asset-server:8080";
proxy_pass $backend;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
# proxy everything else to specify 7
location / {
resolver 127.0.0.11 valid=30s;
client_max_body_size 5000M;
set $backend "http://specify7:8000";
proxy_pass $backend;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
}
#access_log /etc/nginx/certs/logs/access.log;
#error_log /etc/nginx/certs/logs/error.log;
}
Hope that helps
1 Like
Hi,

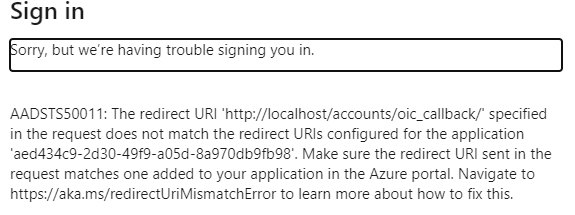

I keep on getting callback error message pointing to “localhost” (http://localhost/accounts/oic_callback/) and not my domain name. How can I get the callback to use my domain name and not localhost? I must be missing something in the config. Any idea of what I’m doing wrong?
I also noticed that my callback is using “http” rather than “https”! Should we keep using docker image “specifyconsortium/specify7-service:sso-https” or “specifyconsortium/specify7-service:v7”? Will “specifyconsortium/specify7-service:v7” be updated to use “https” with SSO?
Examples:
-
With Docker image “specifyconsortium/specify7-service:v7” I get a “http” callback…
-
With Docker image “specifyconsortium/specify7-service:sso-https” I get a “https” callback instead…
Hi, did you try adding this line to your nginx file proxy_set_header X-Forwarded-Proto $scheme;
like this:
# proxy everything else to specify 7
location / {
client_max_body_size 400M;
client_body_buffer_size 400M;
client_body_timeout 120;
resolver 127.0.0.11 valid=30s;
set $backend "http://specify7:8000";
proxy_pass $backend;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme; # add this line
}
If that doesn’t work, maybe try hard-coding it to https like this proxy_set_header X-Forwarded-Proto https;
Also, add the line SECURE_PROXY_SSL_HEADER = ('HTTP_X_FORWARDED_PROTO', 'https') to the secifyweb/settings/specify_settings.py file.
Another problem might be that port 443 isn’t open.
Make sure the Django and nginx settings are updated with docker compose down; docker compose up --build -d;
After reading the error page Error AADSTS50011 the redirect URI does not match the redirect URIs configured for the application - Azure | Microsoft Learn, it seems the URL defined in the your Azure portal dones’t match the requested URL. Check the full request header in the login.microsoftonline.com/ sign in page to get the requested redirect URI for Specify, and then add that to your Azure portal authorization accepted URIs. Maybe try adding both https://localhost/accounts/oic_callback/ and http://localhost/accounts/oic_callback/ in the Azure portal. Just make sure to remove those for production.
Let me know if any of that works for you.
1 Like
Hello @Heryk
Just use the regular images but just destroy the images and redeploy instead of just restarting (just to be sure). I noticed that is the only way to get the edited config applied right.
1 Like
Hello @alec.white and @dfernandez,
I checked and I do have the following line in my nginx file:
proxy_set_header X-Forwarded-Proto $scheme;
The following line is also present at the end of my specify_settings.py file:
SECURE_PROXY_SSL_HEADER = ('HTTP_X_FORWARDED_PROTO', 'https')
I deleted all my images and containers to make sure I started from scratch and executed several tests and got the same errors. The v7 tagged specify7-service image doesn’t use “https” in the callback but the sso-https tagged does. In addition, both v7 and sso-https tagged images redirect me to the incorrect “localhost” URL (localhost/accounts/oic_callback). They don’t use my domain name.
Is there a way to hardcode the callback URL so that I don’t get a redirect to “localhost”?
I also tried hard coding “https” in the nginx configuration file as suggested:
proxy_set_header X-Forwarded-Proto https;
However, instead of being redirected to the Microsoft user authentication login page as before, I now get an error message from the /accounts/login page indicating that the CSRF verification failed. Could you confirm that I have the correct syntax for hard coding “https”?
PS. Here’s a little more context on my setup… For security concerns, Docker is prohibited on our servers. So, I’m using Podman with Pods to run Specify-7 instead of just using it with Docker and Compose. I have Apache setup on a RHEL server that reverse proxies requests to a Podman Pod containing all the Specify 7 containers (SP-6, NGINX, Asset server, Redis, SP-7, SP-7 Worker and Report runner). Except for my current issues with SSO (Single Sign-On), everything works just fine.
Thanks for your help
Héryk
Great news! I’m almost there!
As I mentioned, I have Apache set up on a RHEL server that reverse proxies requests to a Podman Pod containing all the Specify 7 containers.
To finally resolve the issue with the oic_callback pointing to “localhost” instead of my domain name, I had to make changes to my Apache configuration. The two main modifications were:
RequestHeader set X-Forwarded-Proto "https"
ProxyPreserveHost On
Now, EntraID redirects to Specify!
However, just like @dfernandez experienced, I’m encountering a KeyError exception from Specify on callback:
{"exception": "KeyError", "message": "id_token", "data": "None", "traceback": "Traceback (most recent call last):\n File \"/opt/specify7/ve/lib/python3.8/site-packages/django/core/handlers/base.py\", line 181, in _get_response\n response = wrapped_callback(request, *callback_args, **callback_kwargs)\n File \"/opt/specify7/ve/lib/python3.8/site-packages/django/views/decorators/http.py\", line 40, in inner\n return func(request, *args, **kwargs)\n File \"/opt/specify7/specifyweb/accounts/views.py\", line 183, in oic_callback\n id_token = get_token.json()['id_token']\nKeyError: 'id_token'\n"}
By the way, I have added SECURE_PROXY_SSL_HEADER = ('HTTP_X_FORWARDED_PROTO', 'https') to the specifyweb/settings/specify_settings.py file and proxy_set_header X-Forwarded-Proto $scheme in my nginx.conf file.
Any suggestions would be greatly appreciated.
Wow!!! It worked!
I just deleted all my containers, and the configuration modifications were successful! I’m now using EntraID to authenticate! Awesome!
P.S. I believe having official documentation would be incredibly helpful for future users who want to implement SSO with Specify 7.
1 Like
